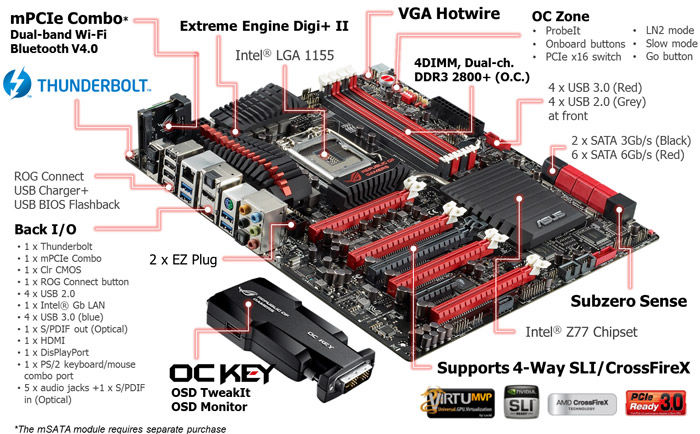

Asus INTEL Maximus V Extreme
₱17340
Socket 1155 |
Intel® Socket 1155 for 3rd/2nd Generation Processors |
Intel® Z77 |
4 x DIMM, Max. 32GB, DDR3 MHz Memory |
Supports NVIDIA® 4-Way SLI™ and AMD CrossFire X Technologies SupportsLucidLogix®Virtu™ MVP Technology |
5 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 3.0/2.0 x4, 1 x mini-PCIe 2.0 x1 |
Intel®Z77chipset: 3xSATA6Gb/sport(s),red 3xSATA3Gb/sport(s),black 1xmini-SATA3Gb/sport(s),black SupportRaid0,1,5,10 ASMedia®PCIeSATAcontroller: 4xSATA6Gb/sport(s),red |
Intel®, 1 x Gigabit LAN Controller(s) |
Wi-Fi 802.11 b/g/n |
Bluetooth V4.0 Bluetooth V3.0+HS |
Realtek® ALC898 8-Channel High Definition Audio CODEC |
Intel® Z77 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at the mid-board) ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue) Intel® Z77 chipset : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) |
mPCIe Combo; ROG OC Key; ROG Connect; Extreme Engine Digi+ II; ROG Extreme OC Kit; ProbeIt; UEFI BIOS; iROG; Extreme Tweaker |
1xPS/2Keyboard/Mousecombo 1xThunderbolt 1xD-Sub 1xHDMI 1xLAN(RJ45)port(s) 4xUSB3.0 4xUSB2.0 1xOpticalS/PDIFout 5xAudioJack(s) 1xClearCMOSbutton |
Extended ATX Form Factor: 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ) |
