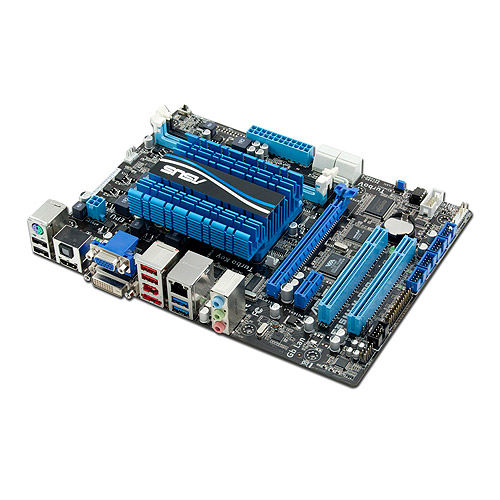

Asus AMD E35M1-M
₱6435
AMD APU
E-350 Dual-Core ONBOARD Processors AMD Cool 'n' Quiet™ Technology |
AMD FCH A50 (Hudson M1) |
2 x DIMM, Max. 8GB, DDR3 1066 Hz Non-ECC, Un-buffered
Memory Single Channel Memory Architecture |
Integrated ATI Radeon™ HD 6310 GPU Multi-VGA output support : HDMI/DVI/RGB ports *1 Maximum shared memory of 1024 MB |
1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 2 x PCI |
Built-in Controller : 5 x SATA 6Gb/s port(s), gray 1 x eSATA 6Gb/s port(s), red |
Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
Realtek® ALC 887-VD2 8-Channel High Definition Audio CODEC *2 |
Built-in Controller : 14 x USB 2.0 port(s) (6 at back panel, black+red+blue, 8 at mid-board) |
ASUS EPU : - EPU Turbo Key Turbo Key II TurboV ASUS Exclusive Features : - AI Suite II - Anti-Surge - Low EMI Solution - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x eSATA 6Gb/s 1 x IEEE 1394a 1 x LAN (RJ45) port(s) 6 x USB 2.0 1 x Optical S/PDIF out 3 x Audio jack(s) |
uATX Form Factor 9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm ) |
