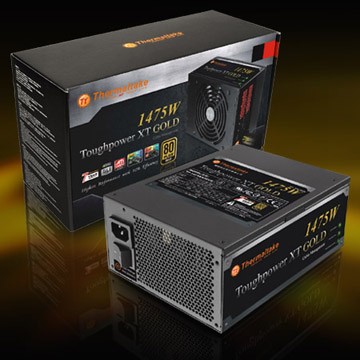

Thermaltake Toughpower XT 1475W 80Plus-Gold APFC SLI/CF Modular Power Supply
₱14892
P/N |
TPX-1475M |
Model | TP-1475AH3CCG |
Type |
ATX 12V 2.3 & SSI EPS 12V 2.92 |
Max. Output Capacity |
1475W |
Peak Output Capacity |
1575W |
Color |
Black |
Dimension (W / H / D) |
150mm(W)x86mm(H)x200mm(L) |
PFC (Power Factor Correction) |
Active PFC |
Power Good Signal |
100-500 msec |
Hold Up Time |
16msec (minimum) at 70% of full load at 115Vac input |
Input current |
115Vac / 16A max. |
Input Frequency Range |
47Hz ~ 63Hz |
Input Voltage |
115V - 230V |
Operating Temperature |
10℃ to +50℃ |
Operating Humidity |
20% to 90%,non-condensing |
Storage Temperature |
-20℃ to +70℃ |
Storage Humidity |
5% to 95%, non-condensing |
Cooling System |
14cm dual ball bearing Fan: 1900RPM ± 10% |
Efficiency |
MEET 80 Plus Gold at 115Vac input. |
MTBF |
MTBF>120,000 hours. |
Safety Approval |
CE, TUV, FCC, UL, CUL, GOST and BSMI certified. |
PCI-E Connector |
6+2PIN PCI-E Connector x 6 8PIN PCI-E Connector x 2 |
