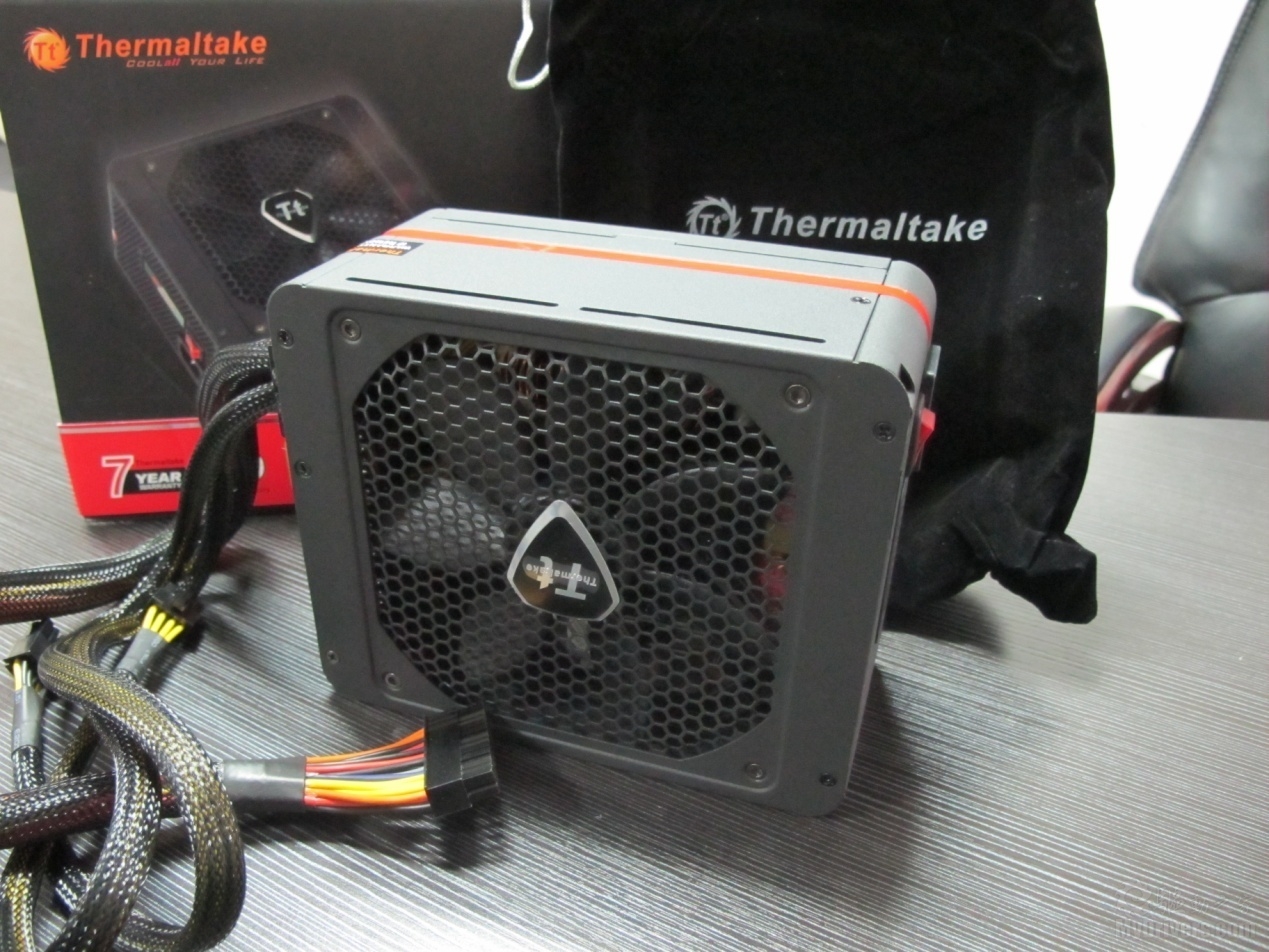

Thermaltake Toughpower Grand 1200W 80Plus-Gold APFC SLI/CF Modular Power Supply
₱12566
Model | TP-1200AH3CSG |
P/N | TPG-1200M |
Type | Intel ATX 12V 2.3 & EPS 12V 2.92 |
Max. Output Capacity | 1200W |
Peak Output Capacity | 1300W |
Color | Black |
Dimension | 150mm(W) x 86mm(H) x 180mm(L) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | 16msec at 75% of full load at 230Vac input |
Input current | Max. 15A |
Input Frequency Range | 50Hz ~ 60Hz |
Input Voltage | 100 VAC- 240 VAC |
Operating Temperature | 10 ℃ to +50 ℃ |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -40 ℃ to +70 ℃ |
Storage Humidity | 20% to 95%, non-condensing |
Cooling System | 14cm dual ball bearing Fan: 1900RPM ± 10% |
Efficiency |
88%~90% @ 115V input Up to 93% @ 230V input |
MTBF | 120,000 hrs minimum |
Safety Approval | CE, TUV, FCC, UL, CUL, GOST, BSMI |
