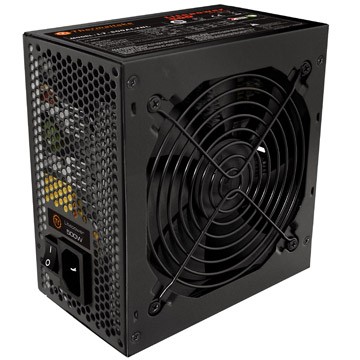

Thermaltake New Litepower 500W PFC 12cm Fan Power Supply [Black Coating]
₱1765
P/N | LT-500 |
Model | LT-500NL2NL |
Type |
ATX 12V 2.3 |
Max. Output Capacity |
500W |
Color |
Black |
Dimension (W / H / D) |
150mm x 85.1mm x 141mm |
PFC (Power Factor Correction) | W/O PFC |
Power Good Signal |
“Power Good” signal rise time is within 1ms. |
Hold Up Time |
The power supply with 80% of Max. load at 230 Vac, 50 Hz should supply regulated DC outputs for at least 16 ms after the loss of the AC input voltage at zero cross. |
Input current |
6A |
Input Frequency Range |
50Hz |
Input Voltage |
230Vac |
Operating Temperature |
10℃~+40℃ |
Operating Humidity |
To 85% relative humidity |
Storage Temperature |
-20℃~+70℃ |
Storage Humidity |
To 95% relative humidity |
Cooling System |
120mm Fan: 1600-1900 RPM |
Efficiency |
70% typical at nominal line, maximum load. |
MTBF |
100,000 hrs minimum |
Safety Approval |
TUV, CE, Gost |
PCI-E Connector | 6+2pin PCI-E Connector x 2 |
