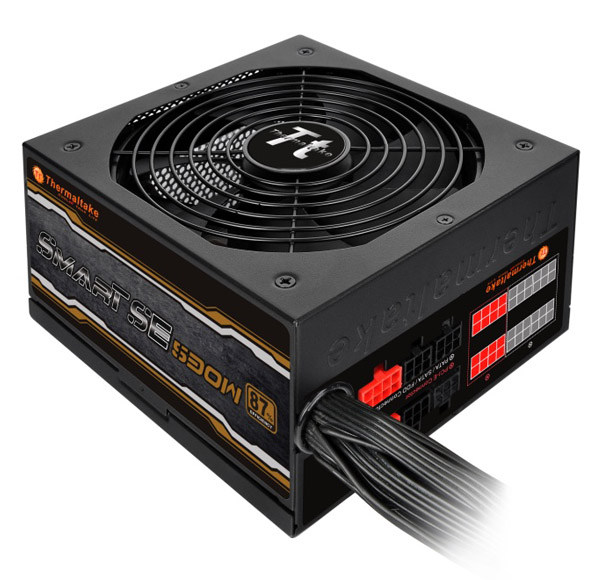

Thermaltake SMART 550W 80Plus-Bronze APFC SLI/CF 14cm Fan Modular Power Supply
₱3764
P/N |
SP-550M |
Model |
SP-550AH3CCB |
Type |
Intel ATX 12V 2.3 |
Max. Output Capacity |
550W |
Peak Output Capacity |
605W |
Color |
Black |
Dimension (H x W x D) |
86mm x 150mm x 160mm |
PFC (Power Factor Correction) |
Active PFC |
Power Good Signal |
100-500 msec |
Hold Up Time |
16msec (minimum) @ 80% of full load at 115Vac/ 230Vac input. |
Input current |
8A |
Input Frequency Range |
47 Hz - 63 Hz |
Input Voltage |
100 Vac- 240 Vac |
Operating Temperature |
0℃ to +50℃ |
Operating Humidity |
20% to 90%,non-condensing |
Storage Temperature |
-20 ℃ to +70 ℃ |
Storage Humidity |
5% to 95%, non-condensing |
Cooling System |
140mm Fan: 1800 R.P.M. ± 10% |
Efficiency |
82-88% efficiency @ 20-100% load |
MTBF |
100,000 hrs minimum |
Safety Approval |
UL/CUL/TUV/CE/FCC and BSMI |
PCI-E Connector | PCI-E 8pin x 1, PCI-E 6+2pin x 1 |
