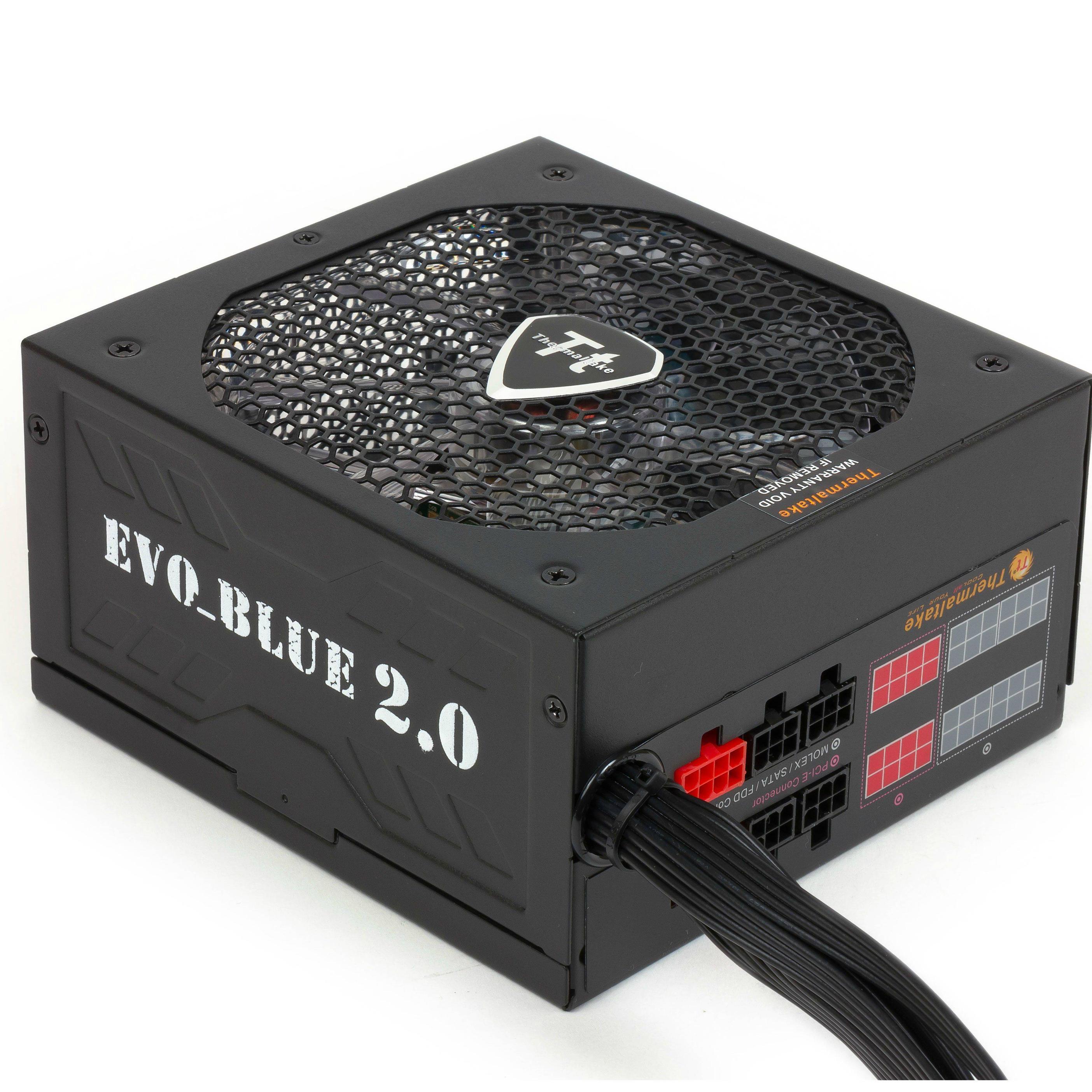

Thermaltake EVOBlue2.0 650W 80Plus-Gold APFC SLI/CF Modular 14cm LED Fan Power Supply-Black
₱5804
P/N | EVO-650M |
Model | EVO-650AH3CCG |
Type | Intel ATX 12V 2.3 & EPS 12V 2.92 |
Max. Output Capacity | 650W |
Peak Output Capacity | 750W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(L) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | 16msec (minimum) at 70% of full load at 230/115Vac input. |
Input current | Max. 10A |
Input Frequency Range | 47Hz ~ 63Hz |
Input Voltage | 100 VAC- 240 VAC |
Operating Temperature | 0℃ to +40℃ |
Operating Humidity | 20% to 90%,non-condensing |
Operating Temperature | -20 ℃ to +70 ℃ |
Storage Humidity | 5% to 95%, non-condensing |
Cooling System | 14cm dual ball bearing Fan: 1900RPM ± 10% |
Efficiency | MEET 80 Plus GOLD at 115Vac input. |
MTBF | 120,000 hrs minimum |
Safety Approval | CE, TUV, FCC, UL, CUL, CCC, GOST and BSMI certified. |
PCI-E Connector | PCI-E 6+2pin x 4 |
