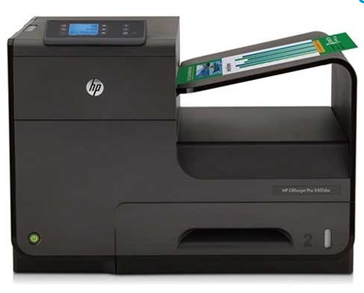

HP Officejet Pro X451dw Printer

Printer Specifications
Automatic paper sensor
No
Borderless printing
No
Duplex printing
Automatic (standard)
Duty cycle (monthly, A4)
Up to 50,000 pages
Recommended monthly page volume
500 to 2,800
Recommended monthly page volume note
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
Duty cycle note
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
Envelope feeder
No
Hard disk
None
Memory card compatibility
None
Paper trays, maximum
Up to 3
Paper trays, standard
2
Printer drivers included
Windows PCL6 Discrete, Mac PS, Windows HP UPD, Linux, UNIX, SAP, HP ePrint Mobile Driver
Print languages
HP PCL 5c, HP PCL 6, native PDF, HP Postscript Level 3 emulation
Printer management
HP Web Jetadmin
Embedded Web Server
HP Driver Configuration Utility
HP Driver Deployment Utility
HP Utility (Mac)
Print technology
HP Pagewide Technology with pigmented inks
SureSupply note
HP SureSupply alerts you when you should replace a print cartridge and helps you purchase locally or via the Internet. For more information, visit http://www.hp.com/learn/suresupply. Only available with original HP supplies
Internet access required.
SureSupply supported
Yes
Printing Media Handling
Maximum input capacity (photo paper)
Up to 225 sheets
Maximum input capacity (sheets)
Up to 1050 sheets
Envelope input capacity
Up to 37 envelopes
Media type and capacity, tray 1
sheets: 50
envelopes: 7
cards: 25
photos: 25
labels: 25
Media type and capacity, tray 2
sheets: 500
envelopes: 30
cards: 100
photos: 100
labels: 100
Media type and capacity, tray 3
sheets: 500
cards: 100
photos: 100
labels: 100
Maximum output capacity (photo paper)
Up to 50 sheets
Maximum output capacity (envelopes)
Up to 35 envelopes
Maximum output capacity (sheets)
Up to 300 sheets
Output capacity
Up to 300 sheets
Standard output capacity (envelopes)
Up to 35 envelopes
Paper handling input, optional
Optional 500-sheet tray
Paper handling input, standard
500-sheet input tray, 50-sheet multi-purpose tray
Paper handling output, standard
300-sheet face-down output bin
Supported Printing Media
Recommended media weight (duplex)
60 to 120 g/m² (plain paper)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Media sizes, custom
Tray 1: 76 x 127 to 216 x 356 mm
Tray 2: 102 x 210 to 216 x 297 mm
Tray 3: 102 x 210 to 216 x 356 mm
Standard media sizes (duplex)
A4
B5
Media sizes supported
Tray 1: A4
A5
A6
B5 (JIS)
B6 (JIS)
10 x 15 cm
L
envelopes (B5
C5
C6
DL). Tray 2: A4
A5
B5 (JIS)
envelopes (B5
C5
DL). Tray 3: A4
A5
B5 (JIS)
Media size, tray 1
A4
A5
A6
B5 (JIS)
B6 (JIS)
10 x 15 cm
envelopes (B5
C5
C6
DL)
76 x 127 to 216 x 356 mm
Media size, tray 2
A4
A5
B5 (JIS)
envelopes (B5
C5)
102 x 210 to 216 x 298 mm
Media size, tray 3
A4
A5
B5 (JIS)
102 x 210 to 216 x 356 mm
Media types
Plain paper (light, intermediate, mid-weight, heavy, extra heavy, prepunched, recycled, bond, other inkjet plain paper)
HP Advanced Photo papers (glossy, gloss, soft gloss, satin, matte, other inkjet photo)
envelopes
labels
cards
HP Brochure Matte
and other HP inkjet specialty paper (glossy brochure, matte brochure, tri-fold brochure, Hagaki, greeting cards, other inkjet specialty paper)
Media weight, supported
Tray 1: 60 to 120 g/m² (plain paper)
125 to 300 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card). Tray 2: 60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card). Tray 3: 60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Media weight, recommended
60 to 120 g/m² (plain paper)
125 to 300 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Media weight (tray 1)
60 to 120 g/m² (plain paper)
125 to 300 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Media weight (tray 2)
60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Media weight (tray 3)
60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Print Area
Maximum print area
201.6 x 347.1 mm
Bottom margin (A4)
4.2 mm
Left margin (A4)
4.2 mm
Right margin (A4)
4.2 mm
Top margin (A4)
4.2 mm
Print Resolution
Print quality black (best)
Up to 1200 x 1200 optimised dpi from 600 x 600 input dpi
Print quality color (best)
Up to 2400 x 1200 optimised dpi from 600 x 600 input dpi
Print Time
First page out black (A4, ready)
As fast as 9.5 sec
First page out color (A4, ready)
As fast as 9.5 sec
First page out footnote
No heating or fusing warm up time required
Camera Specifications
PictBridge supported
No
Cartridges and Printheads
Compatible ink types
Pigment-based (black and colour)
Page yield footnote
Average based on ISO/IEC 24711 or HP testing methodology and continuous printing. Actual yield varies considerably based on content of printed pages and other factors. Some ink from included cartridge is used to start up the printer. For information on page yield, visit www.hp.com/go/learnaboutsupplies, or see product packaging
Number of print cartridges
4 (1 each black, cyan, magenta, yellow)
Print heads
4 (1 each black, cyan, magenta, yellow)
Memory
Memory, standard
512 MB
Memory, maximum
512 MB
Display Specifications
Display
5.08 cm MGD (Monochrome Graphic Display)
Battery and Power
Power
Input voltage: 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz)
Power supply type
Internal (Built-in) Universal Power Supply
Power consumption
100 watts (maximum), 70 watts average (printing), 9.5 watts (ready), 4.5 watts (sleep), 0.95 watts (auto-off), 0.2 watts (manual-off)
Power consumption footnote
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption in Sleep modes depends on customer network switch capability, user configuration and network activity.
Rack and Power Specifications
Typical electricity consumption (TEC) number
0.60 kWh/Week
System Requirements
Minimum system requirements for Macintosh
Mac OS X v10.6, OS X Lion, OS X Mountain Lion
Intel® Core™ Processor
1 GB available hard disk space
CD-ROM/DVD drive or Internet connection
USB port
Minimum system requirements
Windows 8, Windows 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 2 GB hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer
Windows Vista: 800 MHz 32-bit (x86) or 64-bit (x64) processor, 2 GB hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer
Windows XP (SP3) or higher (32-bit only): any Intel® Pentium® II, Celeron® or compatible processor, 233 MHz or higher, 750 MB hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 6 or higher
Linux: For more information, see hplip.net
SAP: For more information see hp.com/go/sap/drivers
Security Management
Security management
SSL/TLS (HTTPS)
IPP over TLS (port 443 – excludes Airprint)
Device firewall configuration
Control panel lock
Password protect EWS
Unused protocol and service disablement
Syslog
Certificate support
Signed firmware
Administrator settings
Compatible with HP Access Control Express
Software and Applications
Software included
Windows Installer and discrete PCL 6 driver
Mac Installer and PS driver
HP Update
HP Participation Study
Bing Toolbar
HP Smart Print
Print Speed
Print speed black (ISO, laser comparable)
Up to 36 ppm
Print speed color (ISO, laser comparable)
Up to 36 ppm
Print speed duplex (A4)
Up to 18 ipm
Print speed black (draft, A4)
Up to 55 ppm
Print speed black (normal, A4)
Up to 36 ppm
Print speed colour (draft, A4)
Up to 55 ppm
Print speed colour (normal, A4)
Up to 36 ppm
What's in the box
HP Officejet X451dw Printer
HP 970 Setup Black Officejet Ink Cartridge
HP 971 Setup Officejet Ink Cartridges (Cyan, Magenta, Yellow)
printer software and user’s guide on CD-ROM
getting started guide
setup poster
power cable
USB cable
Connectivity and Communications
Ports
1 USB 2.0
1 Host USB
1 Ethernet
1 WiFi 802.11b/g/n
Mobile printing capability footnote
HP ePrint requires an Internet connection to the printer and an Account Registration with HP Web Services. Print times may vary. For a list of supported documents and image types for HP ePrint, see hp.com/go/eprintcenter. AirPrint™ and the AirPrint Logo are trademarks of Apple® Inc., registered in the U.S. and other countries. AirPrint requires the printer be connected to the same network as your Apple device. Wireless performance is dependent upon physical environment and distance from the access point. For additional solutions, see hp.com/go/mobile-printing-solutions.
Mobile printing capability
HP ePrint, Mobile Apps, Google Cloud Print, Wireless direct printing, Apple AirPrint™
HP auto wireless connect
Yes
Connectivity, optional
Support the following external Jetdirect servers
Print only: HP Jetdirect en1700 External Print Server (J7988G), HP Jetdirect en3700 Fast-Ethernet External Print Server for Network Capable Hi-Speed USB 2.0 Peripherals (J7942G), HP Jetdirect ew2400 802.11b/g wireless and Fast Ethernet external print server (USB 2.0, 10/100Base-TX, 802.11b/g) (J7951G), HP Jetdirect ew2500 802.11b/g Wireless Print Server (J8021A)
Other supported accessories: Apple AirPort Express, Apple AirPort Extreme, Apple Airport TimeCapsule
Connectivity, standard
1 Hi-Speed USB 2.0 Host
1 Hi-Speed USB 2.0 Device
1 Ethernet 10/100 Base-TX network
802.11 b/g/n Station
802.11 b/g Access Point
HP ePrint capability
Yes
Wireless capability
Yes
Network ready
Standard (built-in WiFi 802.11b/g/n)
Network capabilities
Standard (built-in Ethernet and WiFi 802.11b/g/n)
Dimensions
Minimum dimensions (W x D x H)
517 x 399 x 380 mm
System Components
Control panel
5.08cm MGD (Monochrome Graphic Display), 2 lights (ePrint, wireless), 9 buttons (display to control panel)
Package weight
20.5 kg
