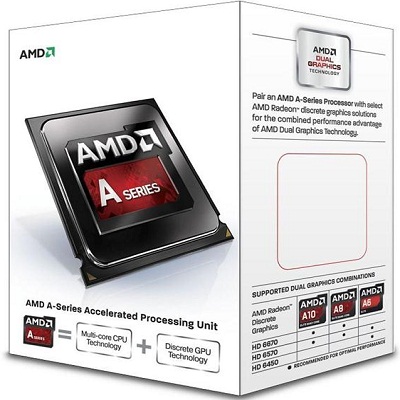

AMD A8-7600 Kaveri Quad-Core 3.1GHz (3.8GHz Turbo) Socket FM2+
₱5280
General information | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD A8-Series |
Model number | A8-7600 |
CPU part numbers |
|
Frequency | 3100 MHz |
Turbo frequency | 3800 MHz |
Package | 906-pin lidded micro-PGA package |
Socket | Socket FM2+ |
Size | 1.57" x 1.57" / 4cm x 4cm |
Introduction date |
January 14, 2014 (announcement) June 2014 (OEM availability) July 31, 2014 (PIB availability) |
Price at introduction | $101 |
Architecture / Microarchitecture | |
Microarchitecture | Steamroller |
Processor core | Kaveri |
Core stepping | KV-A1 |
CPUID | 630F01 |
Manufacturing process |
0.028 micron SHP 2.41 billion transistors |
Die size | 245mm2 |
Data width | 64 bit |
The number of cores | 4 |
The number of threads | 4 |
Floating Point Unit | Integrated |
Level 1 cache size |
2 x 96 KB 3-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches |
Level 2 cache size | 2 x 2 MB 16-way set associative shared caches |
Level 3 cache size | None |
Multiprocessing | Uniprocessor |
Features |
|
Low power features | PowerNow! |
Integrated peripherals / components | |
Integrated graphics |
GPU Type: Radeon R7 series Shader cores: 384 Base frequency (MHz): 720 The number of supported displays: 4 |
Memory controller |
The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-2133 Maximum memory bandwidth (GB/s): 34.1 |
Other peripherals |
|
Electrical / Thermal parameters | |
Maximum operating temperature | 71.3°C |
Thermal Design Power | 65 Watt |
