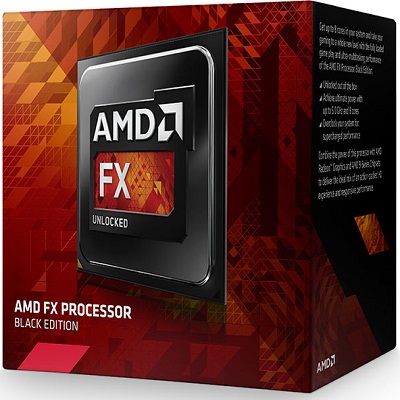

AMD FX-6300 Vishera 6-Core 3.5GHz (4.1GHz Turbo)
₱5450
General information | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD FX-Series |
Model number | FX-6300 |
CPU part numbers |
|
Frequency | 3500 MHz |
Turbo frequency | 4100 MHz |
Boosted P states [1] |
#1: 4100 MHz, 1.425V #2: 3800 MHz, 1.4125V |
Bus speed | One 2600 MHz 16-bit HyperTransport link |
Package |
940-pin organic micro Pin Grid Array (UOC940) Pb-free |
Socket | Socket AM3+ |
Weight [1] |
1.3oz / 38.1g (CPU) 1lb 1.6oz / 498.5g (box) |
Fan/heatsink | Z7MH01T001 |
Introduction date | October 23, 2012 |
Price at introduction | $132 |
Architecture / Microarchitecture | |
Microarchitecture | Piledriver |
Platform | Volan |
Processor core | Vishera |
Core stepping | OR-C0 |
CPUID | 600F20 |
Manufacturing process | 0.032 micron |
Data width | 64 bit |
The number of cores | 6 |
The number of threads | 6 |
Floating Point Unit | Integrated |
Level 1 cache size |
3 x 64 KB 2-way set associative shared instruction caches 6 x 16 KB 4-way set associative data caches |
Level 2 cache size | 3 x 2 MB 16-way set associative shared exclusive caches |
Level 3 cache size | 8 MB 64-way set associative shared cache |
Multiprocessing | Uniprocessor |
Features |
|
Low power features | PowerNow! |
Low power P states [1] |
#1: 3000 MHz, 1.225V #2: 2500 MHz, 1.125V #3: 2000 MHz, 1.025V #4: 1400 MHz, 0.9V |
Integrated peripherals / components | |
Integrated graphics | None |
Memory controller |
The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9 |
Other peripherals | HyperTransport technology |
Electrical / Thermal parameters | |
Thermal Design Power | 95 Watt |
