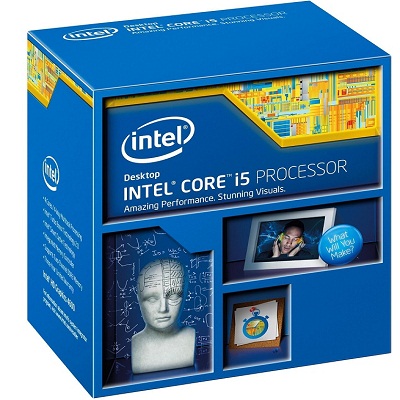

Intel® Core™ i5-4690K Processor (6M Cache, up to 3.90 GHz)
₱11300
General information | |||||||||||||||||||
Type | CPU / Microprocessor | ||||||||||||||||||
Market segment | Desktop | ||||||||||||||||||
Family | Intel Core i5 | ||||||||||||||||||
Model number | i5-4690K | ||||||||||||||||||
CPU part numbers |
|
||||||||||||||||||
Frequency | 3500 MHz | ||||||||||||||||||
Turbo frequency |
3700 MHz (4 cores) 3800 MHz (3 cores) 3900 MHz (1 or 2 cores) |
||||||||||||||||||
Bus speed | 5 GT/s DMI | ||||||||||||||||||
Clock multiplier | 35 | ||||||||||||||||||
Package | 1150-land Flip-Chip Land Grid Array | ||||||||||||||||||
Socket | Socket 1150 / H3 / LGA1150 | ||||||||||||||||||
Size | 1.48" x 1.48" / 3.75cm x 3.75cm | ||||||||||||||||||
Introduction date | June 2, 2014 | ||||||||||||||||||
Price at introduction |
$242 (OEM) $243 (box) |
||||||||||||||||||
S-spec numbers | |||||||||||||||||||
|
|||||||||||||||||||
Architecture / Microarchitecture | |||||||||||||||||||
Microarchitecture | Haswell | ||||||||||||||||||
Processor core | Devil's Canyon | ||||||||||||||||||
Core stepping | C0 (SR21A) | ||||||||||||||||||
Manufacturing process | 0.022 micron | ||||||||||||||||||
Data width | 64 bit | ||||||||||||||||||
The number of cores | 4 | ||||||||||||||||||
The number of threads | 4 | ||||||||||||||||||
Floating Point Unit | Integrated | ||||||||||||||||||
Level 1 cache size |
4 x 32 KB 8-way set associative instruction caches 4 x 32 KB 8-way set associative data caches |
||||||||||||||||||
Level 2 cache size | 4 x 256 KB 8-way set associative caches | ||||||||||||||||||
Level 3 cache size | 6 MB 12-way set associative shared cache | ||||||||||||||||||
Physical memory | 32 GB | ||||||||||||||||||
Multiprocessing | Uniprocessor | ||||||||||||||||||
Features |
|
||||||||||||||||||
Low power features | Enhanced SpeedStep technology | ||||||||||||||||||
Integrated peripherals / components | |||||||||||||||||||
Integrated graphics |
GPU Type: HD 4600 Base frequency (MHz): 350 Maximum frequency (MHz): 1200 The number of supported displays: 3 |
||||||||||||||||||
Memory controller |
The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1333, DDR3-1600 Maximum memory bandwidth (GB/s): 25.6 |
||||||||||||||||||
Other peripherals |
|
||||||||||||||||||
Electrical / Thermal parameters | |||||||||||||||||||
Maximum operating temperature | 72.72°C | ||||||||||||||||||
Thermal Design Power | 88 Watt |
