Type

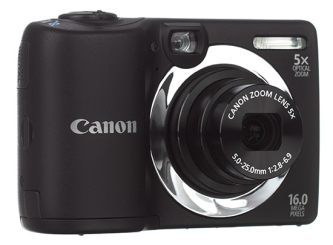

Compact digital camera with built-in flash, 5x Optical, 4x Digital, and 20x Combined Zoom
Type
16.0 Megapixel 1/2.3-inch CCD
Total Pixels
16.6 Megapixels
Effective Pixels
16.0 Megapixels
Focal Length
5.0 (W) - 25.0 (T) mm (35mm film equivalent: 28 (W) - 140 (T) mm)
Optical Zoom
5x
Digital Zoom
4x
Focusing Range
Normal: 1.2 in. (3cm) - infinity (W), 3.9 ft. (1.2m) - infinity (T)
Macro: 1.2 in. - 1.6 ft. (3-50cm) (W)
Macro: 1.2 in. - 2.0 ft. (3-60cm) (W)
Autofocus System
TTL Autofocus
Optical Viewfinder
Real-image Optical Viewfinder
LCD Monitor
2.7-inch TFT Color LCD with wide-viewing angle
LCD Pixels
Approx. 230,000 dots
LCD Coverage
Approx. 100%
Maximum Aperture
f/2.8 (W) - f/6.9 (T)
Shutter Speed
1 - 1/2000 sec.
15 - 1/2000 sec. (Total shutter speed range)
Sensitivity
Auto, ISO 100/200/400/800/1600 (in P mode)/6400 (in Low Light mode)
Light Metering Method
Evaluative*, Center-weighted average, Spot**
* Facial brightness is evaluated in Face Detect (Face Detect AE)
** Fixed to center
Exposure Control Method
AE Lock
Exposure Compensation
+/-2 stops in 1/3 stop increments
(Not available when shooting movies)
White Balance Control
Auto, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
Built-in Flash
Auto, On, Slow Synchro, Off
Facial brightness is also evaluated in Face Detect.
Flash Range
1.6 - 9.8 ft. (W), 3.9 - 6.6 ft. (T) / 50cm - 3.0m (W), 1.2m - 2.0m (T)
Recycling Time
10 seconds or less (Battery Voltage: 3.0V)
Flash Exposure Compensation
N/A
Shooting Modes
Auto, P, Live View Control, Digital IS, Portrait, Face
Self-timer, Low Light, Fisheye Effect, Miniature Effect, Toy Camera
Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long
Shutter
*Shooting movies is possible with the movie button.
Photo Effects
N/A
Self Timer
Approx. 10-sec delay/approx 2-sec delay/custom*
* Delay time (0 - 15 sec. (in one-second increments), 20/25/30 sec.)
and number of shots (1 - 10 shots (in one-shot increments) can be
specified.
Wireless Control
N/A
Continuous Shooting
Approx: 0.8 shots/sec. (In P Mode)
Approx. 2.9 shots/sec. (In Low Light Mode)
Storage Media
SD Memory Card, SDHC Memory Card, SDXC Memory Card
File Format
Design rule for Camera File System, DPOF (Version 1.1) compliant
JPEG Compression Mode
Still Images: Exif 2.3 (JPEG)
Movies: MOV (Image data: H.264; Audio data: Linear PCM (2 channel monoaural))
Number of Recording Pixels
Still Images:
[Large]: 4608 x 3456
[Medium 1]: 3264 x 2448
[Medium 2]: 1600 x 1200
[Small]: 640 x 480
[Widescreen]: 4608 x 2592
* 2304 x 1728 when in Low Light mode
Movies:
[Miniature Effect]
1280 x 720*1, 640 x 480*2
[iFrame Movie]
1280 x 720 (25 fps)
[Other than the above]
1280 x 720 (25 fps), 640 x 480 (30 fps*3)
*1 Shooting: 5 fps / 2.5 fps / 1.25 fps
Playback: 25 fps
*2 Shooting: 6 fps / 3 fps / 1.5 fps
Playback: 30 fps*3
Image data
Large (L) | Medium 1 (M1) | Medium 2 (M2) | Small (S) | Widescreen (W) |
Medium (M)* |
|
File Size (KB) | 4,093 | 2,060 | 558 | 150 | 3,069 | 1,144 |
8GB | 1,903 | 3,721 | 12,927 | 40,937 | 2,531 | 6,638 |
32GB | 7,684 | 15,020 | 52,176 | 165,225 | 10,219 | 26,792 |
Movie data
Miniature Effect | Other | |||||||
HD: 1280 x 720 | 640 x 480 | HD: 1280 x 720 | SD: 640 x 480 | |||||
5x | 10x | 20x | 5x | 10x | 20x | 25 fps | 30 fps*3 | |
5 fps*1 | 2.5 fps*1 | 1.25 fps*1 | 6 fps*2 | 3 fps*2 | 1.5*2 fps | |||
Movie Size (KB/sec.) | 487 | 243 | 122 | 246 | 123 | 61 | 2,621 | 1,416 |
8GB | 4 hr. 00 min. 33 sec. | 7 hr. 34 min. 23 sec. | 13 hr. 37 min. 54 sec. | 7 hr. 34 min. 23 sec. | 13 hr. 37 min. 54 sec. | 22 hr. 43 min. 11 sec. | 49 min. 15 sec. | 1 hr. 28 min. 53 sec. |
32GB | 16 hr. 11 min. 39 sec. | 30 hr. 35 min. 22 sec. | 55 hr. 03 min. 40 sec. | 30 hr. 35 min. 22 sec. | 55 hr. 03 min. 40 sec. | 91 hr. 46 min. 07 sec. | 3 hr. 19 min. 00 sec. | 5 hr. 59 min. 05 sec. |
Playback Modes File
Still Images and Movies:
Auto Rotate, Rotate, Search (Date, Movies, Still Images)
Still Images:
Single, Index (4-100 Thumbnails), Magnification (Approx. 2x-10x),
Information Display (Histogram, Overexposure Warning), Resume Playback,
Transition, Red-Eye Correction, i-Contrast, Resize, Photobook Set-up
Movies:
Normal Playback*1, Pause, Slow Motion, Skip Backward*2, Previous Frame*3, Next Frame*3, Skip Forward*2
- Displays playback position and shooting time
*1 Audio settings available in 5 levels
*2 Approximately 4 seconds
*3 Rewind and Fast-forward are also available
Erase Modes
Single Image*, Erase All
- The image data in the memory card stored with the design rule for
camera file systems format can be erased (however, protected images
cannot be erased).
* Movies can be erased individually.
Computer Interface
Hi-Speed USB (Dedicated connector (female) with unified type of digital, audio and video)
*2 mini-B compatible.
Video Out
NTSC/PAL (unified type dedicated connector (female)) with digital, audio and video
Audio Out
Monaural (unified type dedicated connector (female)) with digital, audio and video
Other
Memory card slot; direct connection to Canon SELPHY Compact
Photo Printers, PIXMA Inkjet Photo Printers and PictBridge-compatible
printers via camera's USB 2.0 Hi-Speed cable
Power Source
2 AA Alkaline Batteries (AA NiMH Batteries NB-3AH)
Shooting Capacity
AA Batteries
LCD on: 150
LCD off: 150
ECO mode
AA, LCD on: 200 shots
Using NiMH Batteries
LCD on: 500
LCD off: 1,100
Playback Time
Approx. 6 hours (Approx. 13 hrs. with AA NiMH batteries NB-3AH)
Operating Temperature
32-104°F/0-40°C
Operating Humidity
10-90%
Dimensions (W x H x D)
3.73 x 2.43 x 1.17 in. (94.7 x 61.7 x 29.8mm)
Weight
Approx. 6.14 oz. / 174 g (Including the battery and memory card)
Approx. 4.44 oz. / 126 g (Camera body only)
