Type

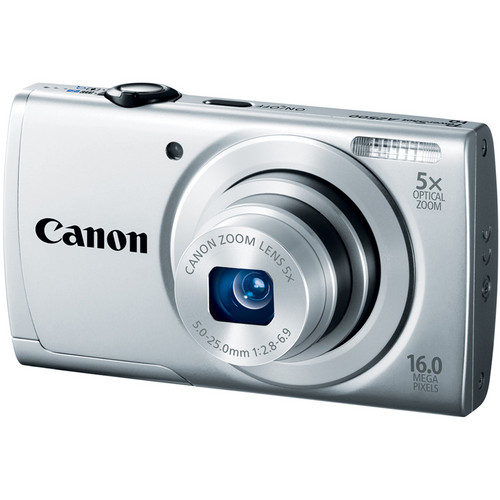

Compact digital camera with built-in flash, 5x Optical, 4x Digital, and 20x Combined Zoom
Type
16.0 Megapixel 1/2.3-inch CCD
Total Pixels
Approx. 16.6 Megapixels
Effective Pixels
Approx. 16.0 Megapixels
Focal Length
5.0 (W) - 25.0 (T) mm (35mm film equivalent: 28 (W) - 140 (T) mm)
Optical Zoom
5x
Digital Zoom
4x
Focusing Range
Normal: 1.2 in. (3cm) - infinity (W), 3.9 ft. (1.2m) - infinity (T)
Macro: 1.2 in. - 1.6 ft. (3-50cm) (W)
Autofocus System
TTL Autofocus
Optical Viewfinder
N/A
LCD Monitor
2.7-inch TFT Color LCD with wide-viewing angle
LCD Pixels
Approx. 230,000 dots
LCD Coverage
Approx. 100%
Maximum Aperture
f/2.8 (W) - f/6.9 (T)
Shutter Speed
1 - 1/2000 sec.
15 - 1 sec. (shooting long exposures)
Sensitivity
Auto, ISO 100 - ISO 1600, 1-step increments
Light Metering Method
Evaluative, Center-weighted average, Spot
Exposure Control Method
Still images: AE Lock, FE Lock, AF Lock
Exposure Compensation
+/-2 stops in 1/3 stop increments
(Not available when shooting movies)
White Balance Control
Auto, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
Built-in Flash
Auto, On, Slow Synchro, Off
Flash Range
1.6 - 9.8 ft. (W), 3.9 - 6.6 ft. (T) / 50cm - 3.0m (W), 1.2m - 2.0m (T)
Recycling Time
10 seconds or less (battery voltage: 3.7 V)
Flash Exposure Compensation
N/A
Shooting Modes
Auto, P, Live View Control, Digital IS, Portrait, Face
Self-timer, Low Light, Fisheye Effect, Miniature Effect, Toy Camera
Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long
Shutter
- Shooting movies is possible with the movie button.
Photo Effects
N/A
Self Timer
Off / 2 sec. / 10 sec. / Custom Timer*
* Delay time (0 - 15 sec. (in one-second increments), 20/25/30 sec.) and
number of shots (1 - 10 shots (in one-shot increments)) can be
specified.
Wireless Control
N/A
Continuous Shooting
Approx: 0.8 shots/sec. (In P Mode)
Approx. 2.9 shots/sec. (In Low Light Mode)
Storage Media
SD Memory Card, SDHC Memory Card, SDXC Memory Card
File Format
Design rule for Camera File system, DPOF (Version 1.1) compatible
JPEG Compression Mode
Still Images: Exif 2.3 (JPEG)
Movies: MOV (Image data: H.264; Audio data: Linear PCM (monoaural))
Number of Recording Pixels
Still Images:
[Large]: 4608 x 3456
[Medium 1]: 3264 x 2448
[Medium 2]: 1600 x 1200
[Small]: 640 x 480
[Widescreen]: 4608 x 2592
* 2304 x 1728 when in Low Light mode
Movies:
HD 1280 x 720: 25 fps
640 x 480: 30 fps (29.97)
Miniature Effect HD 1280 x 720: 5 fps*1, 2.5 fps*1, 1.25 fps*1
Miniature Effect 640 x 480: 6 fps*2, 3 fps*2, 1.5 fps*2
*1Playback frame rate is 25 fps
*2 Playback frame rate is 30 fps (29.97)
Image data
Large (L) | Medium 1 (M1) | Medium 2 (M2) | Small (S) |
Medium (M)* |
Widescreen (W) | |
File Size (KB) | 4,093 | 2,060 | 558 | 150 | 1,144 | 3,069 |
8GB | 1,903 | 3,721 | 12,927 | 40,937 | 6,638 | 2,531 |
32GB | 7,684 | 15,020 | 52,176 | 165,225 | 26,792 | 10,219 |
*When in Low Light
? The approximate number of images recordable on memory cards other
than the above can be calculated by using the above figures as a
reference and extrapolating accordingly.
Movie data
Miniature Effect | Other | |||||||
HD: 1280 x 720 | 640 x 480 | HD: 1280 x 720 | SD: 640 x 480 | |||||
5x | 10x | 20x | 5x | 10x | 20x | 25 fps | 30 fps*3 | |
5 fps*1 | 2.5 fps*1 | 1.25 fps*1 | 6 fps*2 | 3 fps*2 | 1.5*2 fps | |||
Movie Size (KB/sec.) | 487 | 243 | 122 | 246 | 123 | 61 | 2,621 | 1,416 |
8GB | 4 hr. 00 min. 33 sec. | 7 hr. 34 min. 23 sec. | 13 hr. 37 min. 54 sec. | 7 hr. 34 min. 23 sec. | 13 hr. 37 min. 54 sec. | 22 hr. 43 min. 11 sec. | 49 min. 15 sec. | 1 hr. 28 min. 53 sec. |
32GB | 16 hr. 11 min. 39 sec. | 30 hr. 35 min. 22 sec. | 55 hr. 03 min. 40 sec. | 30 hr. 35 min. 22 sec. | 55 hr. 03 min. 40 sec. | 91 hr. 46 min. 07 sec. | 3 hr. 19 min. 00 sec. | 5 hr. 59 min. 05 sec. |
Playback Modes File
Still Images and Movies:
Auto Rotate, Rotate, Search (Date, Movies, Still Images)
Still Images:
Single, Index (4-100 Thumbnails), Magnification (Approx. 2x-10x),
Information Display (Histogram, Overexposure Warning), Resume Playback,
Transition, Red-Eye Correction, i-Contrast, Resize, Photobook Set-up
Movies:
Normal Playback*1, Pause, Slow Motion, Skip Backward*2, Previous Frame*3, Next Frame*3, Skip Forward*2
- Displays playback position and shooting time
*1 Audio settings available in 5 levels
*2 Approximately 4 seconds
*3 Rewind and Fast-forward are also available
Erase Modes
Single Image*, Erase All
The image data in the memory card stored with the design rule for camera file systems format can be erased (however, protected images cannot be erased).
* Movies can be erased individually.
Computer Interface
Hi-Speed USB (Dedicated connector (female) with unified type of digital, audio and video)
Video Out
NTSC/PAL (dedicated connector (female) with unified type of digital, audio and video)
Audio Out
Monaural (dedicated connector (female) with unified type of digital, audio and video)
Other
Memory card slot; direct connection to Canon SELPHY Compact
Photo Printers, PIXMA Inkjet Photo Printers and PictBridge-compatible
printers via camera's USB 2.0 Hi-Speed cable
Power Source
Rechargeable Lithium-ion Battery NB-11L
Shooting Capacity
Normal: Approx. 220 shots
ECO Mode: Approx. 300 shots
Playback Time
Approx. 5 hours
Operating Temperature
32-104°F/0-40°C
Operating Humidity
10-90%
Dimensions (W x H x D)
3.85 x 2.20 x 0.82 in. / 97.7 x 56.0 x 20.9mm
Weight
Approx. 3.88 oz. / 110g (Body Only)
Approx. 4.41 oz. / 125g (CIPA Standard)
